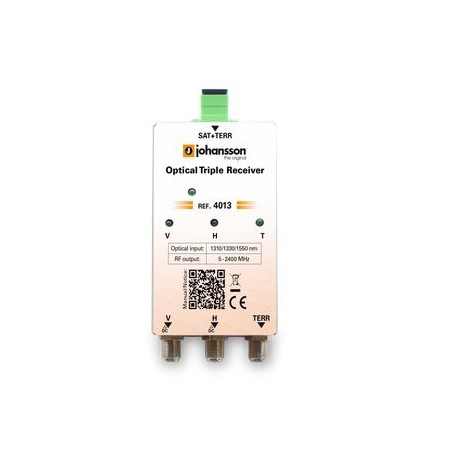

JOHANSSON Optical Triple Receiver

Optical Triple Receiver (1310/1330/1550nm) with AGC

The Optical Triple Receiver is developed for the transmission of broadband signals in medium and large Fiber Optic systems. Ref.4013 converts 1310 + 1330 + 1550 nm to wideband V/H and Terrestrial signal.

• Up to 128 passive splits
• optical Input Level: -15 to +4 dBm
• frequency Range: 5 – 2400 MHz
• high reception quality even with high split ratios
• powering via V/H output (12-20V)
• AGC to boost signal level
• optical wavelengths: 1310-1330-1550nm
• compatible with Johansson wideband Multiswitches (e.g. 9775, 9754, 9758, 9734, etc.) with F jumpers
