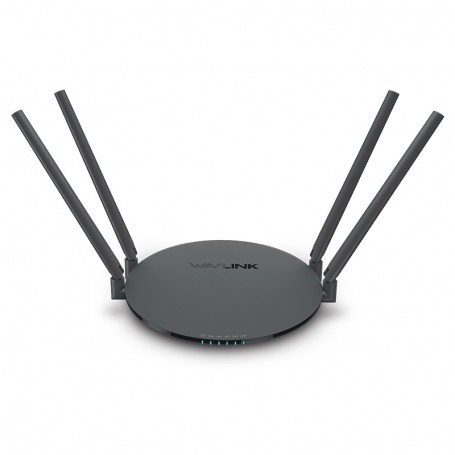

ROUTER WIFI WAVLINK QUANTUM D2G

Il router WiFi Gigabit Full Dual Band WAVLINK QUANTUM D2G AC1200 adotta la tecnologia 802.11ac per velocità più elevate, maggiore capacità e ridotta congestione della rete rispetto alla generazione precedente. Raggiunge una velocità di rete totale di circa 1167 Mbps: 867 Mbps sulla banda da 5 GHz e 300 Mbps sulla banda da 2,4 GHz. Supporta la connessione cablata di computer, console di gioco, lettori di streaming con quattro porte Ethernet 1G. Supporta la modalità AP per trasformare la tua connessione cablata in rete wireless, un router wireless ideale per la casa. WAVLINK QUANTUM D2G con il suo delicato design dalla forma rotonda e le antenne pieghevoli da 5dBi è una scelta ad alte prestazioni ed economica per il router domestico.

• Model

  WL-WN530G3

• Processor

  Dual-Core CPU 1GHz

• Ethernet Port (RJ45)

  1 x 10/100/1000Mbps WAN PORT

  4 x 10/100/1000Mbps LAN PORTS

• Button

  1 x WPS (2s) & Reset (6s)

• Antenna

  4 x 5dBi antennas

  Omni-directional and foldable

• LED

  1 x SYS

  1 x WAN

  4 x LAN

• Power Adapter

  input:100-240V ~ 50/60Hz

  Output: 12V⎓1A

• WIRELESS
• Wireless Standards

  IEEE 802.11b/g/n/a/ac

• Frequency

  5GHz and 2.4GHz

• Speed

  802.11ac: up to 867Mbps

  802.11n: up to 300Mbps

  802.11a: up to 54Mbps

  802.11g: 54Mbps

  802.11b: 11Mbps

• Encryption

  WPA-PSK

  WPA2-PSK

  WPA/WPA2 Mix

• Wireless Range

  2 Bedroom Houses

  4 × Fixed High-Performance Antennas
  Multiple antennas form a signal-boosting array to cover more
  directions and large areas

  Beamforming
  Concentrates wireless signal strength towards clients to
  expand WiFi range

• High Wireless Capacity

  Dual-Band
  Allocate devices to different bands for optimal performance

  DFS Access an extra band to reduce congestion

  2x2 MIMO 2.4GHz/5GHz dual-band RF transceiver

• SOFTWARE
• Working Modes

  Router / AP / Repeater

• WAN Type

  Dynamic IP
  Static IP
  PPPoE

  Cable or DSL Modem (if needed)
  Subscription with an internet service provider for
  internet access.

• DHCP

  Address Reservation
  DHCP Client List
  Server

• Protocols

  IPV4

• Guest Network

  1× 5 GHz Guest Network

  1× 2.4 GHz Guest Network

• Management

  Local management

  Webpage (Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser)

• Network Security

  SPI Firewall

  IP & MAC Binding

  DDoS Attack Prevention

• Cloud Service

  Auto Firmware Upgrade

  OTA Firmware Upgrade

  DDNS

• NAT Forwarding

  Port Forwarding

  DMZ

  UPnP

• Note

  Further software upgrade for feature availability may be required

• PHYSICAL
• WiFi Transmission Power

  CE:
  < 20dBm(2.4GHz)
  < 23dBm(5.15GHz~5.35GHz)
  < 30dBm(5.47GHz~5.725GHz)

  FCC:< 30dBm(2.4GHz & 5.15GHz~5.825GHz)

• WiFi Reception Sensitivity

  5G
  11ac VHT20_MCS0:-82dBm, 11ac VHT20_MCS8: 59dBm
  11ac VHT40_MCS0:-79dBm, 11ac VHT40_MCS9:-54dBm
  11ac VHT80_MCS0:-76dBm, 11ac VHT80_MCS9:-51dBm

  2.4GHz:
  11n HT20_MCS0:-82dBm, 11n HT20_MCS7:-64dB
  11n HT40_MCS0:-79dBm, 11n HT40_MCS7:-61dB

• Environment

  Operating Temperature: 0°C ~40°C

  Storage Temperature: -10°C ~ 70°C

  Operating Humidity: 10%~90% non-condensing

  Storage Humidity: 10%~90% non-condensing

• Product Dimension (WxDxH)

  20 x 20 x 3cm (without antennas)

• In the box

  1 x Wireless Router

  1 x RJ-45 Networking Cable

  1 x DC 12V Power Adapter

  1 x Quick Installation
