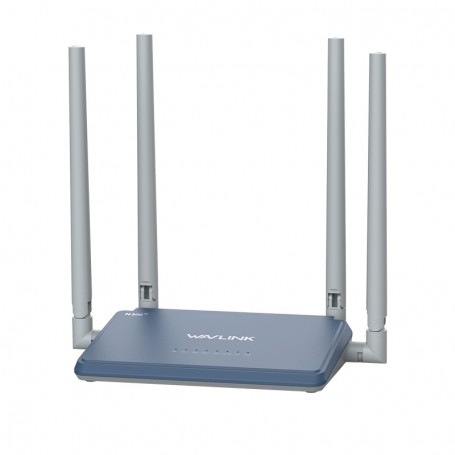

ROUTER WI-FI 4G WAVLINK WN529E4D
zoom_out_map
chevron_left chevron_right

ROUTER WI-FI 4G WAVLINK WN529E4D

WAVLINK WN529E4D   ROOUTER WI-FI 4G N300 2.4GHz 10/100

PER QUOTAZIONI PER AZIENDE E PRIVATI CONTATTARCI DIRETTAMENTE

Descrizione

Wavlink WL-WN529E4 è particolarmente utile quando i clienti non dispongono di Internet via cavo. Alcuni scenari: 1) quando un cliente vive su una bellissima isola con un'infrastruttura Internet limitata; 2) quando un cliente vive in una zona remota con servizi Internet via cavo molto costosi; oppure 3) quando un cliente si sposta molto e quindi non effettua un abbonamento annuale a Internet via cavo. Caratteristiche: Il router wireless Wavlink WL-WN529E4 4G LTE N300 condivide la tua rete 4G LTE con più dispositivi Wi-Fi e goditi velocità di download fino a 150 Mbps. Raggiunge una velocità di rete di 300 Mbps sulla banda da 2,4 GHz. Supporta la connessione cablata di computer, console di gioco, lettori di streaming con porte Ethernet. Configura il router 4G LTE e condividi il tuo WiFi ovunque. È sufficiente l'uso familiare di 15 dispositivi in ​​un reparto di meno di 1000 piedi quadrati.

  • Model

    WL-WN529E4

  • Ethernet Port (RJ45)

    1 x 100M WAN

    2 x 100M LAN

  • Button

    1 x Reset (6s) / WPS (2s)

  • Antenna

    2 x 2.4G 5dBi Antennas

    2 x 4G LTE 5dBi Antennas

    Omni-Directional and high-gain

  • LED

    1 x Power

    1 x WiFi

    1 x WAN

    2 x LAN

    1 x Internet

    1 x SYS

    1 x WPS

    1 x 4G LED (back side)

  • Power Adapter

    Input: 100-240V ~ 50/60Hz 1A

    Output: 12V⎓1A

  • WIRELESS
  • Wireless Standards

    Wi-Fi
    IEEE 802.11n/b/g 2.4 GHz

    4G/3G/2G:
    4G: FDD-LTE / TDD-LTE
    3G
    2G

  • Frequency

    WiFi Bands:2.4GHz

    LTE Bands: Varies by different regions.

    For business, please let us know your market or specific operators you want to serve, we’ll give you the best solution.

    For aftersales, please let us know product serial number.

  • Speed

    WiFi:2.4GHz: 300Mbps (802.11n)

    LTE CAT4 :Download: 150Mbps
    Upload: 50Mbps

  • Encryption

    WPA2-PSK encryption

  • Wireless Range

    2 Bedroom Houses

    4 × Fixed High-Performance Antennas
    Multiple antennas form a signal-boosting array to cover more
    directions and large areas

  • Wireless Capacity

    2 Streams
    Connect your devices to more bandwidth

  • SOFTWARE
  • Working Modes

    4G Router
    Wireless Router

  • WAN Type

    4G Only
    WAN Only
    4G/WAN Mix

    Dynamic IP
    Static IP
    PPPoE

  • DHCP

    Server
    Client
    DHCP Client List

  • Protocols

    IPV4

  • Management

    Local management

    Webpage (Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser)

  • Network Security

    SPI Firewall

    DDoS Attack Prevention

  • Cloud Service

    Auto Firmware Upgrade

    OTA Firmware Upgrade

  • NAT Forwarding

    Port Forwarding

    DMZ

    UPnP

  • DDNS

    No-ip

    changeip.com

  • Note

    Further software upgrade for feature availability may be required

  • TEST DATA
  • WiFi Transmission Power

    CE:
    < 20dBm(2.4GHz)
    < 23dBm(5.15GHz~5.35GHz)
    < 30dBm(5.47GHz~5.725GHz)

    FCC:< 30dBm(2.4GHz & 5.15GHz~5.825GHz)

  • WiFi Reception Sensitivity

    2.4GHz:
    11n HT20_MCS0:-84dBm, 11n HT20_MCS7:-66dB
    11n HT40_MCS0:-81dBm, 11n HT40_MCS7:-63dB

    4G LTE: Depends on which market to go and therefore which 4G module is used.

  • Environment

    Operating Temperature: 0°C ~40°C

    Storage Temperature: -10°C ~ 70°C

    Operating Humidity: 10%~90% non-condensing

    Storage Humidity: 10%~90% non-condensing

  • PHYSICAL
  • Product Dimension (WxDxH)

    14.4 ×9× 2.5 cm (without antenna)

  • In the box

    1 x 4G WiFi Router

    1 x Power Adapter

    1 x RJ45 Ethernet Cable

    1 x Quick Installation Guide

Scheda tecnica

WL02003
