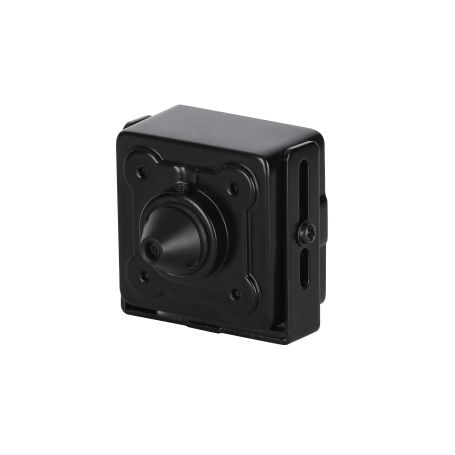

MINI TELECAMERA DAHUA
Descrizione
Camera
Image Sensor
1/2.8 inch CMOS
Effective Pixels
1920 (H) × 1080 (V), 2MP
Scanning System
Progressive
Electronic Shutter Speed
PAL: 1/3s–1/100000s
NTSC: 1/4s–1/100000s
S/N Ratio
>65 dB
Minimum Illumination
Color: 0.004LuxLux/F2.4
Black & White: 0.0004LuxLux/F2.4
Lens
Lens Type
Fixed-focal
Mount Type
M12
Focal Length
2.8 mm
Max. Aperture
F2.4
Angle of View
117.9° × 103° × 59° (diagonal x horizontal x vertical)
Iris Type
Fixed iris
Close Focus Distance
0.5 m (1.6 ft)
DORI Distance
D: 42.1 m (138.1ft); O: 16.8 m (55.1 ft); R: 8.4 m (27.6 ft); I: 4.2 m (13.8 ft)
Video
Frame Rate
CVI:
PAL: 1080P@25fps, 720P@25/50fps
NTSC: 1080P@30fps, 720P@30/60fps
AHD: PAL: 1080P@25fps, 720P@25fps
NTSC: 1080P@30fps, 720P@30fps
TVI: PAL: 1080P@25fps, 720P@25ps
NTSC: 1080P@30fps, 720P@30ps
CVBS: PAL: 960 × 576H
NTSC: 960 × 480H
Resolution
1080P (1920 × 1080); 720P (1280 × 720); 960H (704 × 576/704 × 480)
Day/Night
Auto switch by ICR
BLC
BLC/HLC/WDR
WDR
120 dB
White Balance
Auto; manual
Gain Control
Auto; manual
Noise Reduction
3D NR
Smart IR
Yes
Electronic Defog
Yes
Digital Zoom
4 ×
Mirror
Off/On
Privacy Masking
Off/On
Certifications
Certifications
CE (EN55032, EN55024, EN50130-4,EN60950-1)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Port
Video Output
Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio Input
One channel, RCA sound pick-up port
Power
Power Supply
12V ±30% DC
Power Consumption
Max 2.11W
Environmental
Operating Temperature
-30°C to +60°C (-22°F to 140°F);<95% (non-condensation)
Storage Temperature
-30°C to +60°C (-22°F to 140°F);<95% (non-condensation)
Protection Grade
NA
Construction
Casing
Metal throughout the whole casing
Camera Dimensions
43.5 mm × 36.2 mm × 29.5 mm (1.71" × 1.43" × 1.16")
Net Weight
0.04 kg (0.09 lb)
Gross Weight
0.14 kg (0.31 lb)
